ACC Radar / Distance Sensor New VAG OEM (5Q0907561B)

Name: ACC Radar / Distance Sensor New VAG OEM (5Q0907561B)
Brand: Lohuis Solutions
SKU: LS-0036
Price: 421.87 EUR
Availability: InStock

€421,87 incl. VAT | €348,65 excl. VAT

Low stock

Do you want to be sure that the item / option fits your car?
Add the chassis number and we will check it for you!

This information will be added to this item in the order.

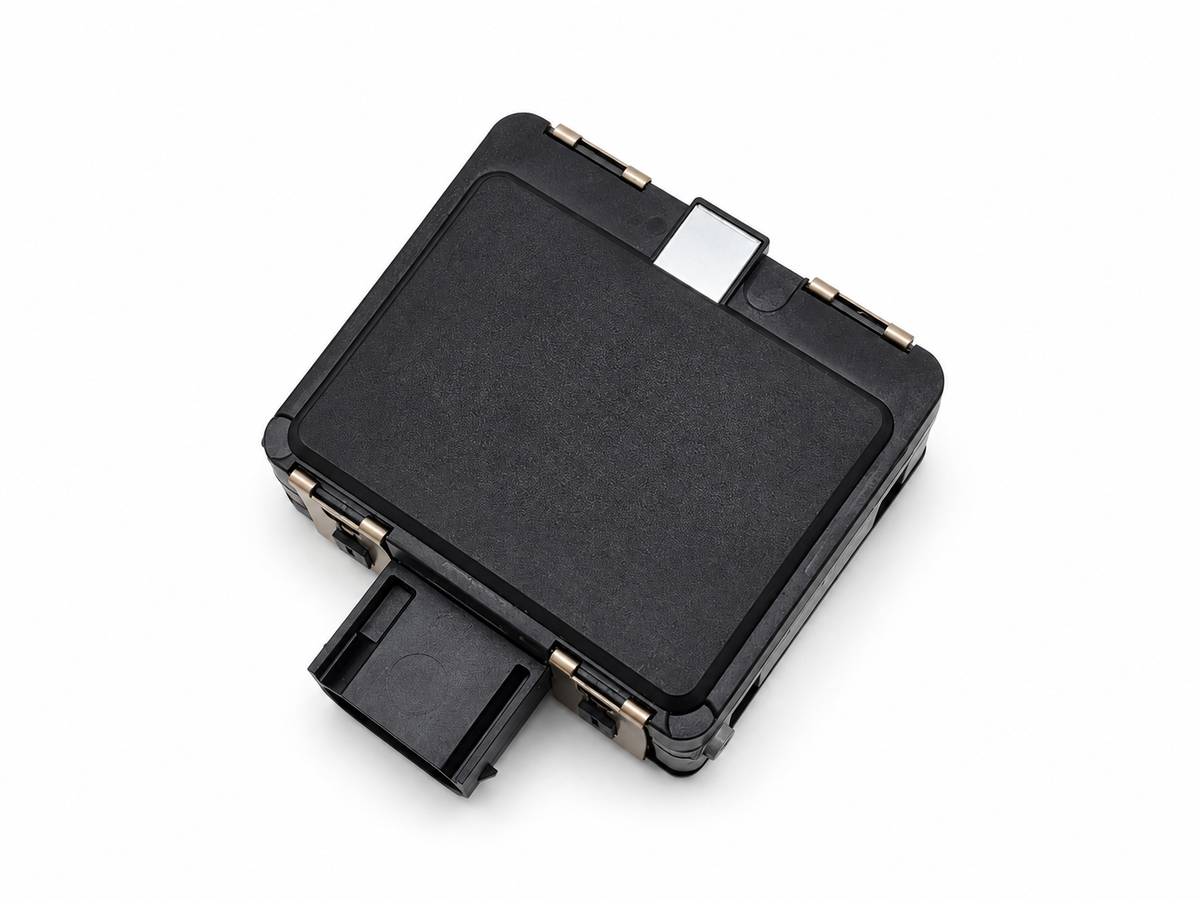

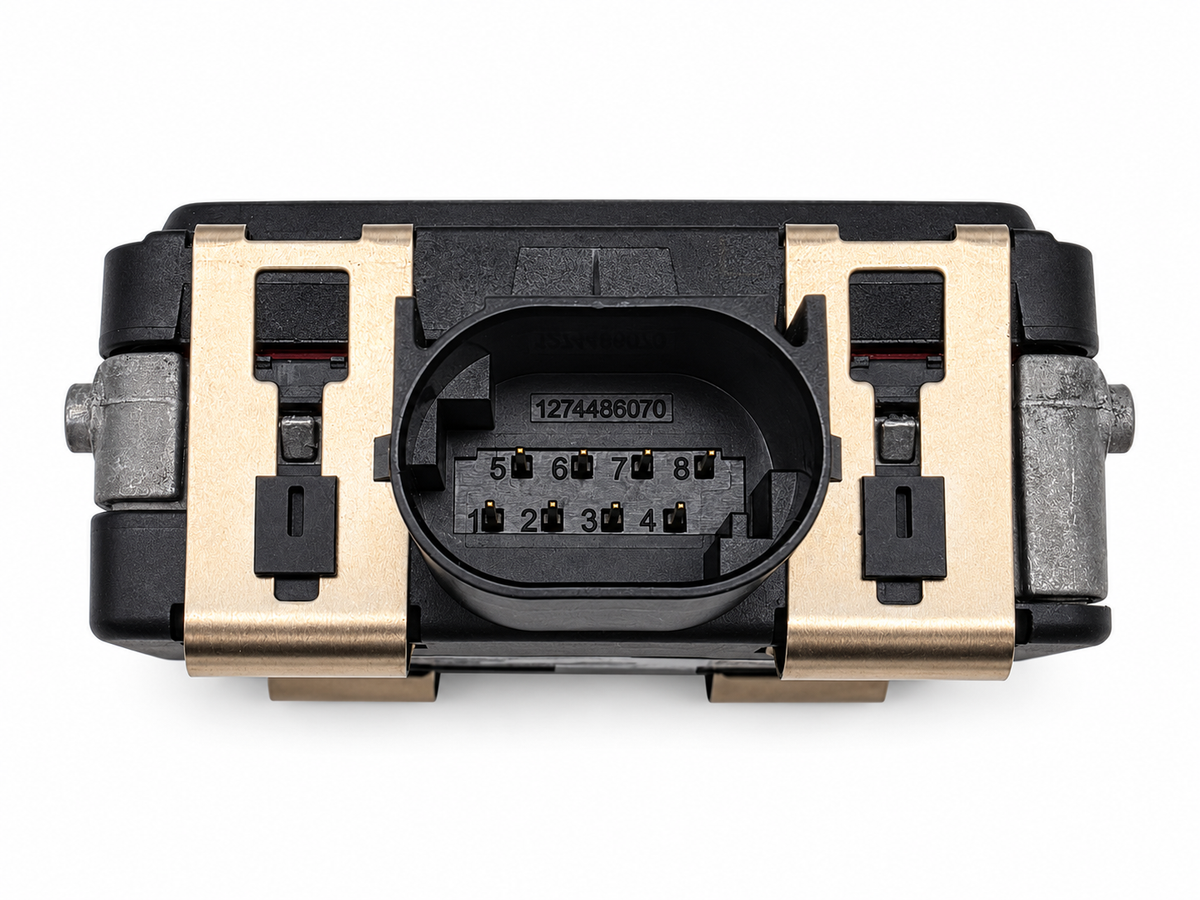

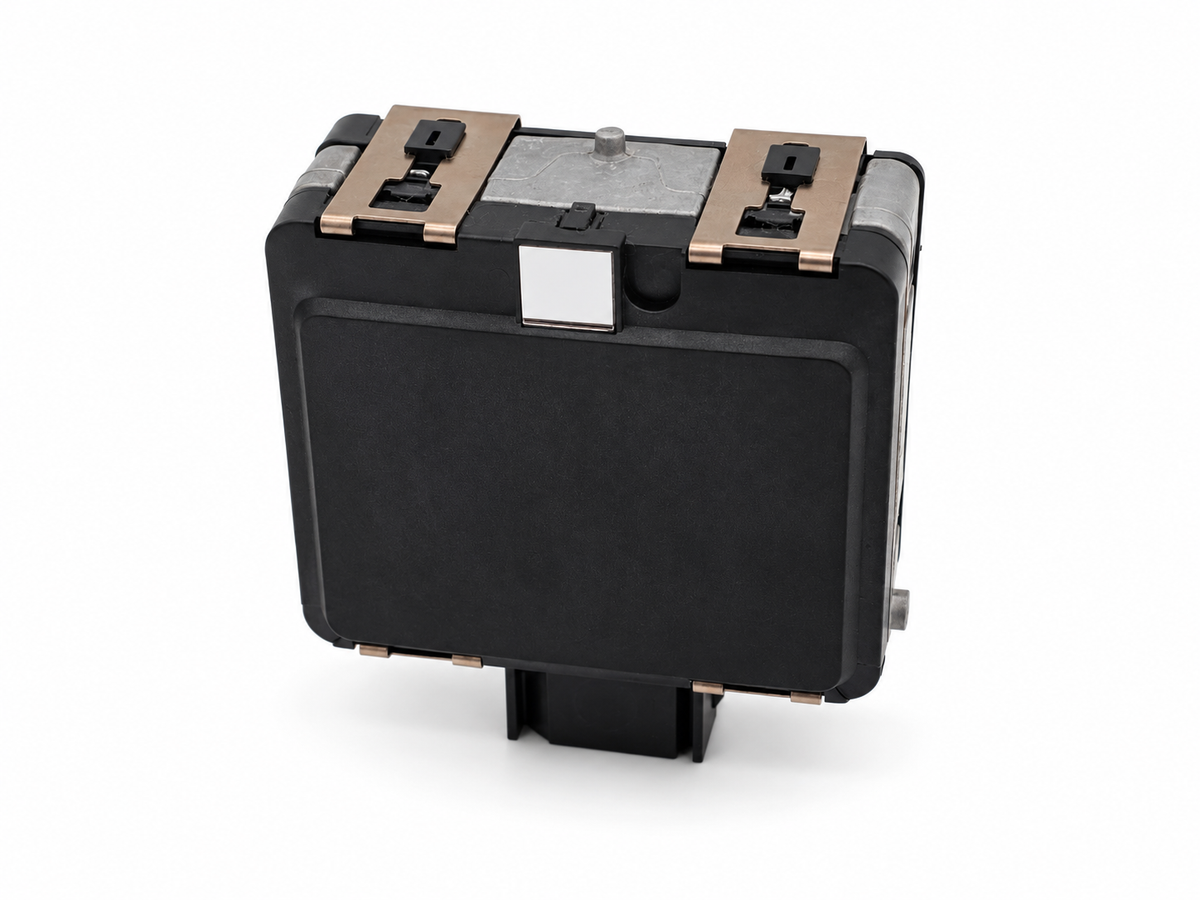

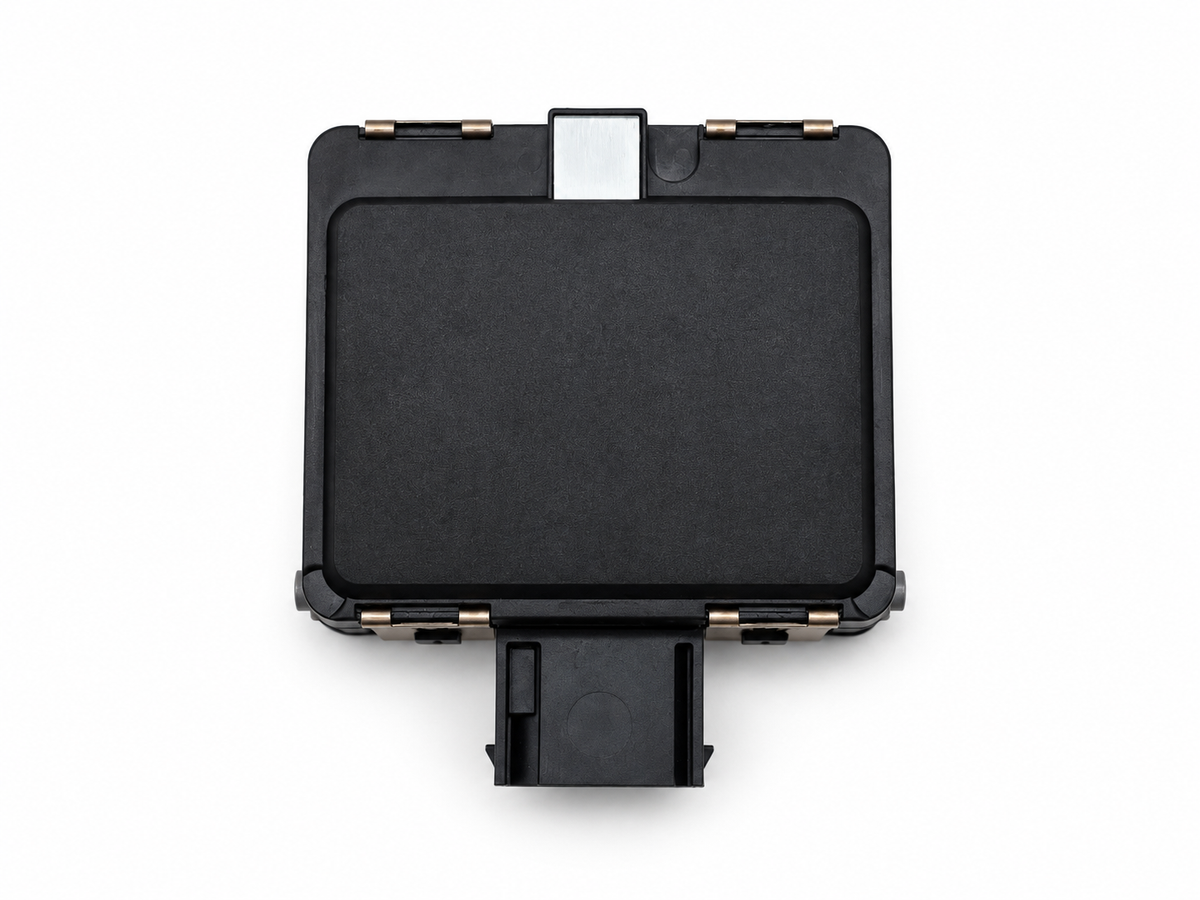

ACC Radar / Distance Radar VAG - OEM 5Q0907561B

Genuine VAG ACC radar sensor (distance radar) for vehicles on the MQB platform with adaptive cruise control and driver assistance systems.

The radar sensor is fitted in the front of the vehicle and continuously measures the distance and speed relative to the traffic ahead. On that basis it supports among others adaptive cruise control (ACC), the distance warning and the emergency brake assist (Front Assist).

If the radar is faulty, damaged or out of alignment, these systems fail or are deactivated by the vehicle. Replacement is often necessary after a collision or front-end damage.

This is a new, genuine OEM VAG part.

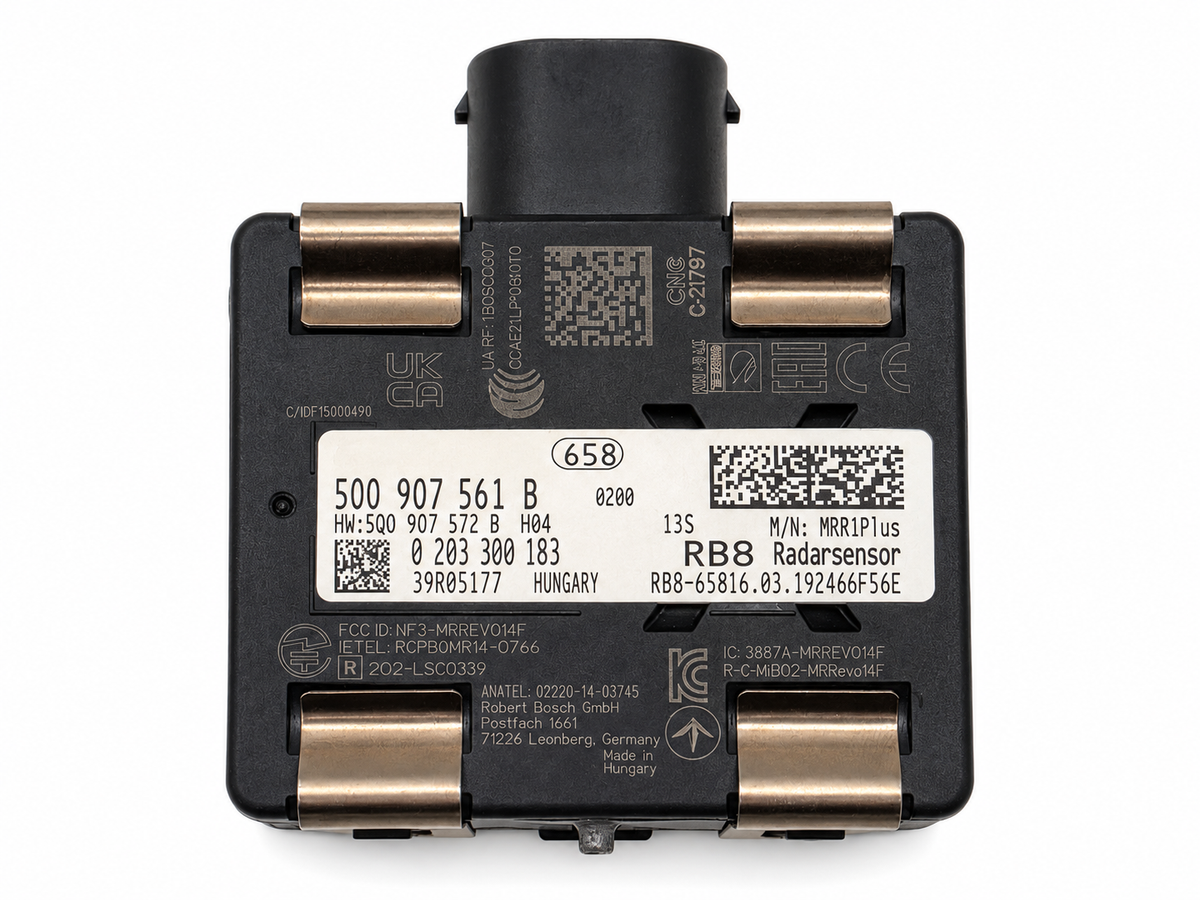

OE numbers

5Q0 907 561 B
5Q0 907 561 A
5Q0 907 561

This radar is also available with part numbers ..N, ..D, ..K, ..F, ..H, ..A and ..G. Please contact us if you need one of those numbers.

Applicability

Suitable for the following models, among others. Which radar version a vehicle has depends on its equipment level, not on the engine; different versions were fitted within the same model. Therefore always check the OE number of the fitted radar before ordering, or have the applicability checked by registration number.

Audi

A3 (8V1, 8VK) - 04/2012 to 10/2020
A3 Sportback (8VA, 8VF) - 09/2012 to 10/2020
A3 Saloon (8VS, 8VM) - 05/2013 to 10/2020
A3 Cabriolet (8V7, 8VE) - 10/2013 to 10/2020

Volkswagen

Golf VII (5G1, BQ1, BE1, BE2) - 08/2012 to 03/2021
Golf VII Variant (BA5, BV5) - 04/2013 to 03/2021
Golf VII Van (5G1, BQ1) - 11/2013 to 03/2017
Polo V (6R1, 6C1) - 06/2009 to 05/2022
Polo V panel van/hatchback (6R1, 6C1) - 10/2009 to 10/2017
Polo V Saloon (602, 604, 612, 614) - 05/2010 to 05/2022

Skoda

Octavia III (5E3, NL3, NR3) and Octavia III Combi (5E5, 5E6) - 11/2012 to 10/2020
Fabia III (NJ3) - 08/2014 to 06/2021
Fabia III Estate (NJ5) - 08/2014 to 12/2022

Seat

Leon (5F1) - 09/2012 to 08/2020
Leon SC (5F5) - 01/2013 to 08/2018
Leon ST (5F8), also panel van/bus - 09/2012 to 08/2020

The complete list of versions and engine codes per model is available on request.

Possible complaints

A faulty, misaligned or uncalibrated ACC radar can cause among others the following complaints:

Adaptive cruise control unavailable or dropping out while driving
"Front Assist: fault" or "Driver assistance systems: fault" message in the display
Distance warning and emergency brake assist out of operation
Systems that only fail after a few kilometres of driving

A complaint does not automatically mean the radar is faulty. First check the mounting position and the front bumper for damage or contamination, then the connector and wiring, and carry out a calibration. If calibration keeps failing or there is an internal fault in the distance control unit (J428), the radar needs to be replaced.

Important fitting information

NOTE: this radar is not plug & play.

After fitting, the radar sensor must be coded and calibrated with suitable diagnostic equipment. Without correct calibration, adaptive cruise control and the associated assistance systems will not work, or will not work reliably.

We recommend fitting and calibration by a qualified workshop with suitable VAG diagnostic equipment and the correct calibration setup.
