Warmtewisselaar Hoogvoltsysteem Nieuw VAG OEM - foto 1

Heat Exchanger High-Voltage System New VAG OEM

Name: Heat Exchanger High-Voltage System New VAG OEM
Brand: Lohuis Solutions
SKU: LS-0040
Price: 431.88 EUR
Availability: InStock

€431,88 incl. VAT | €356,93 excl. VAT

€515,07

Low stock

Do you want to be sure that the item / option fits your car?
Add the chassis number and we will check it for you!

This information will be added to this item in the order.

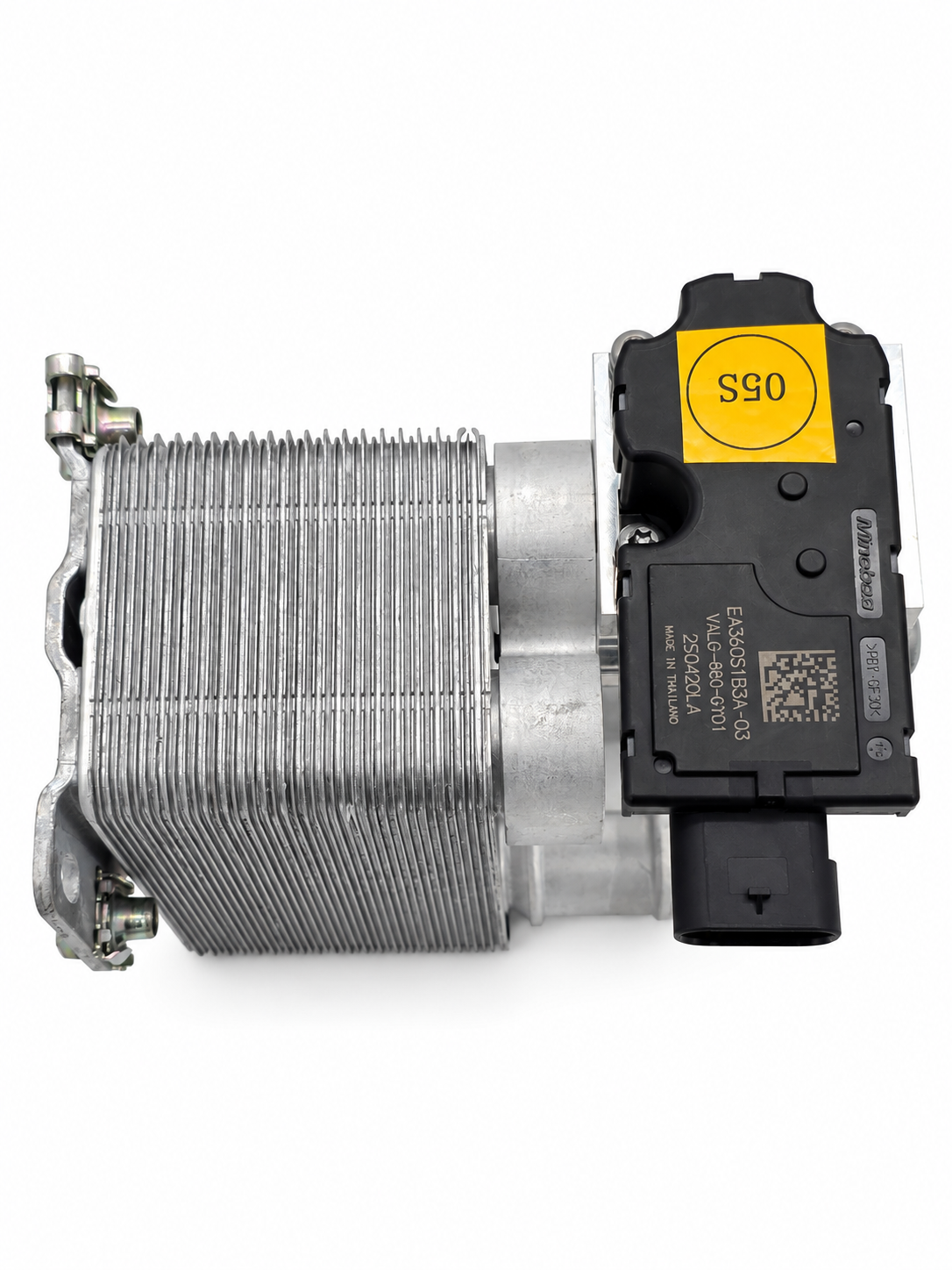

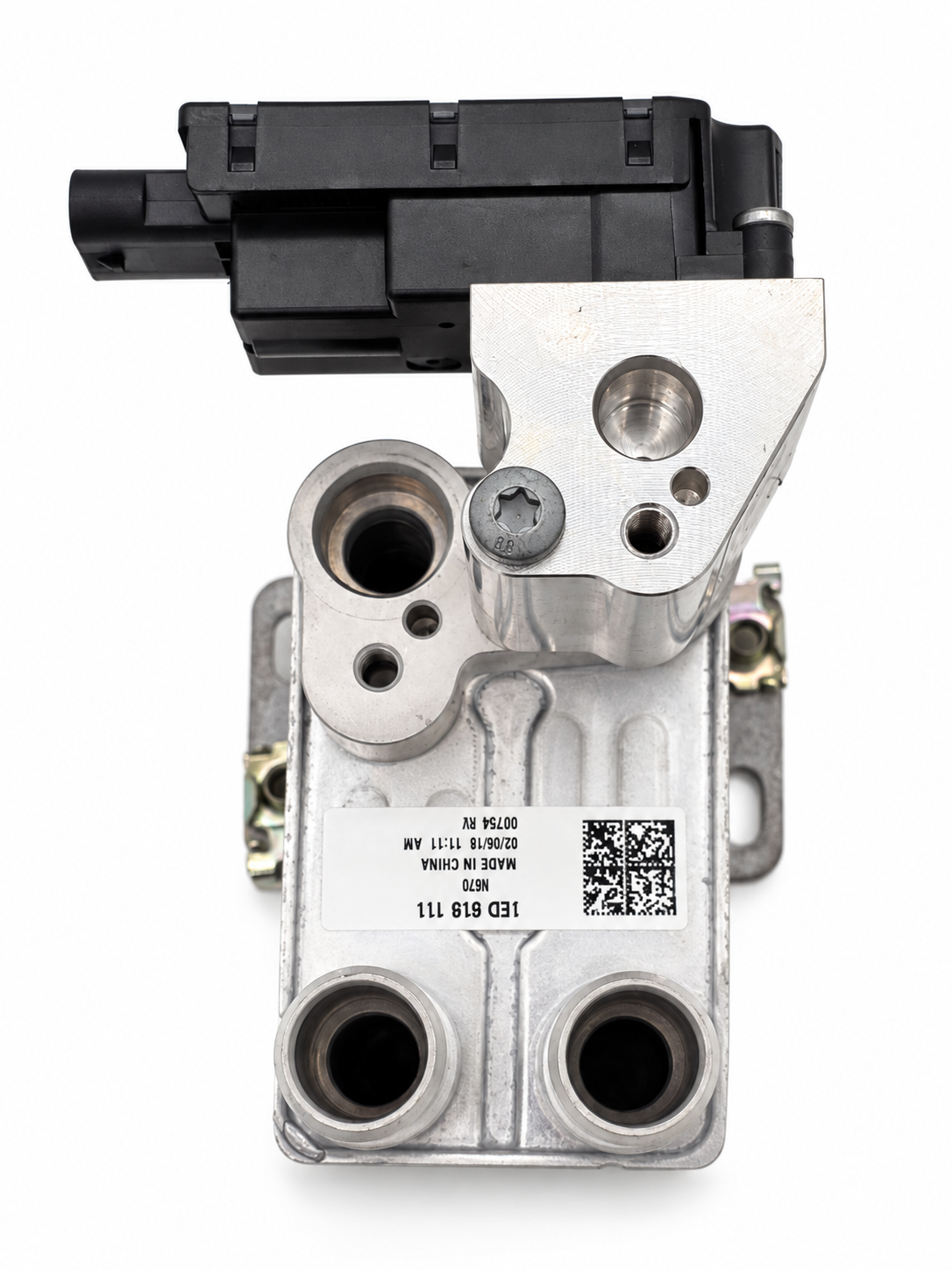

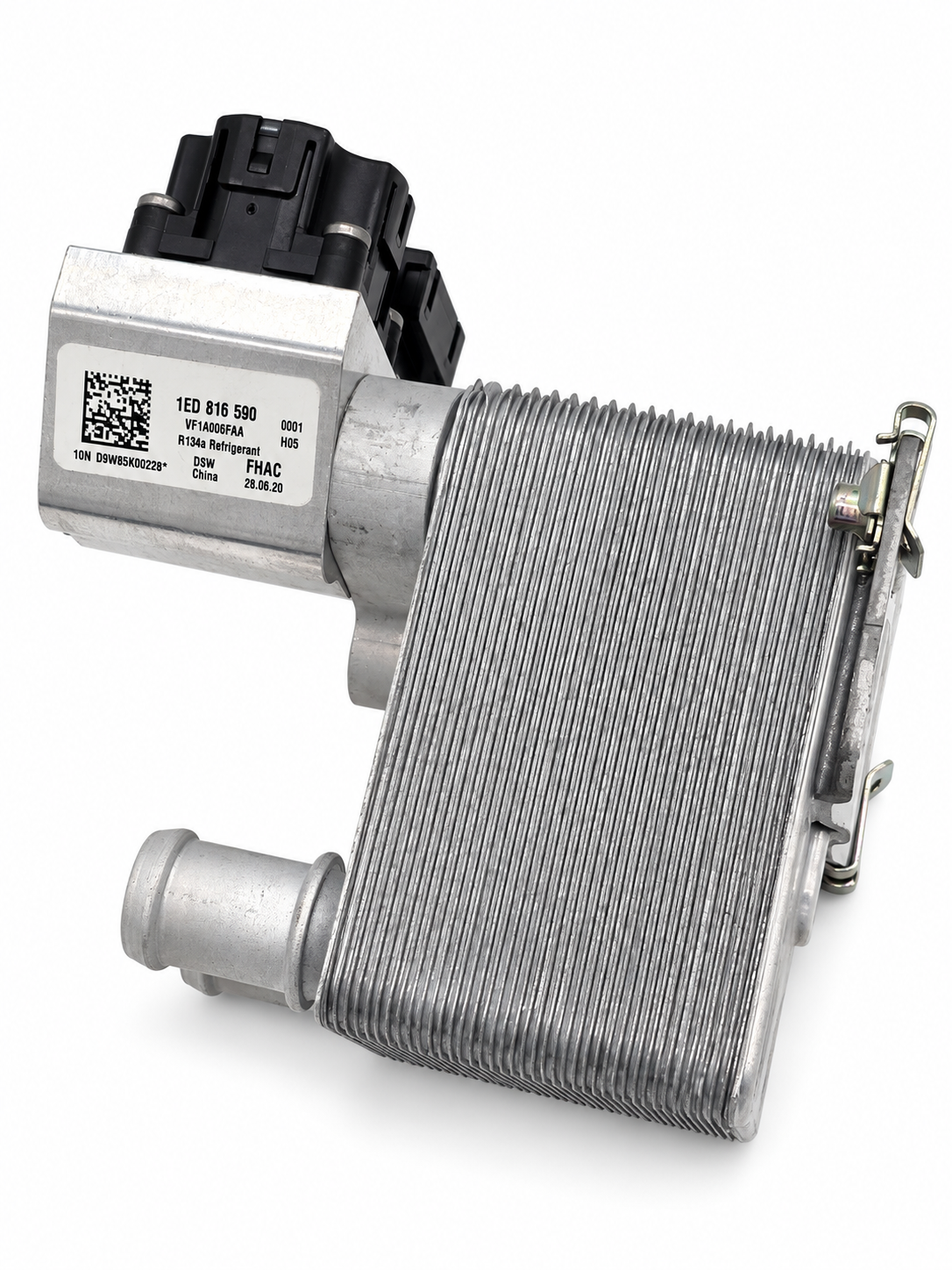

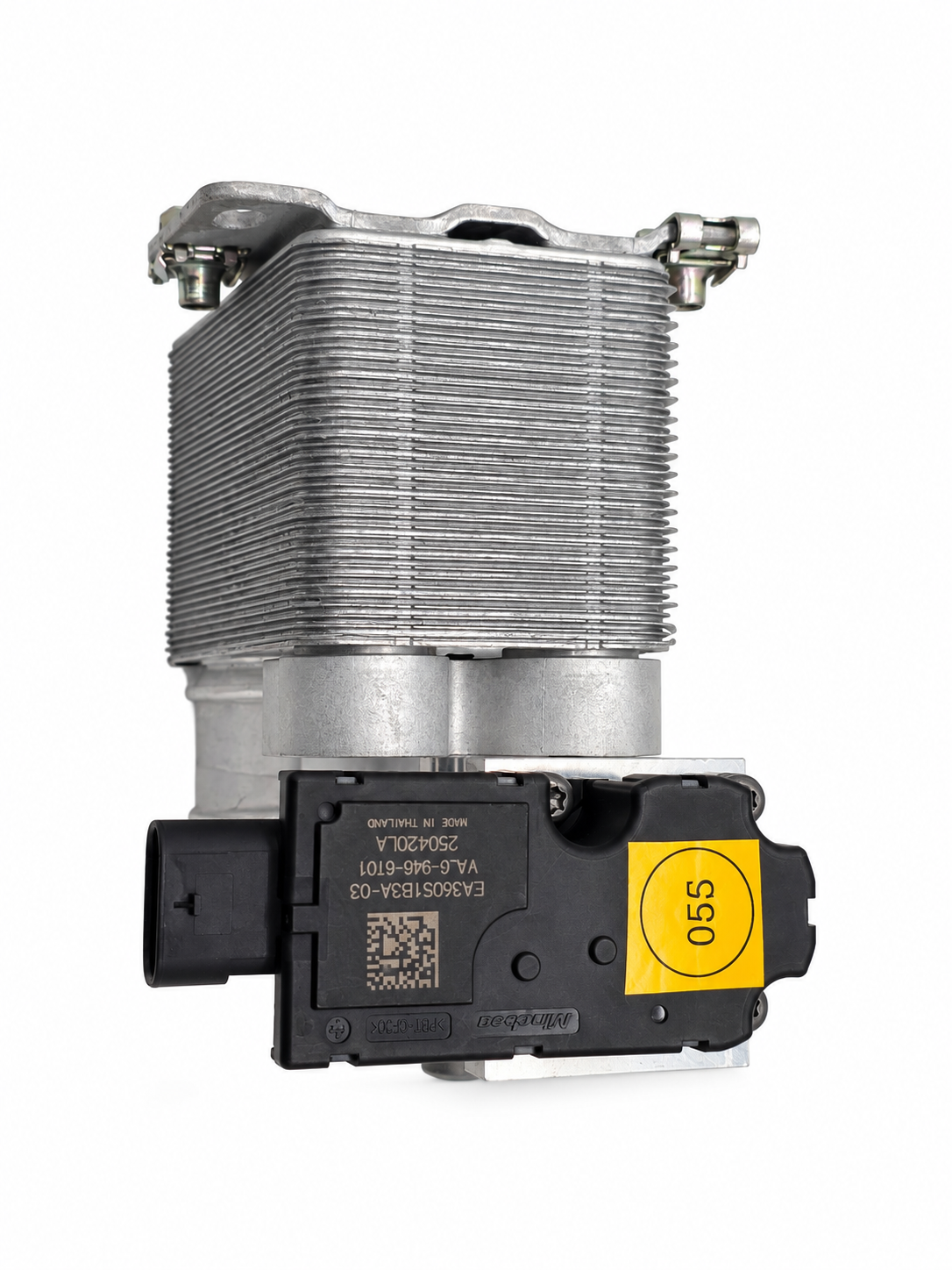

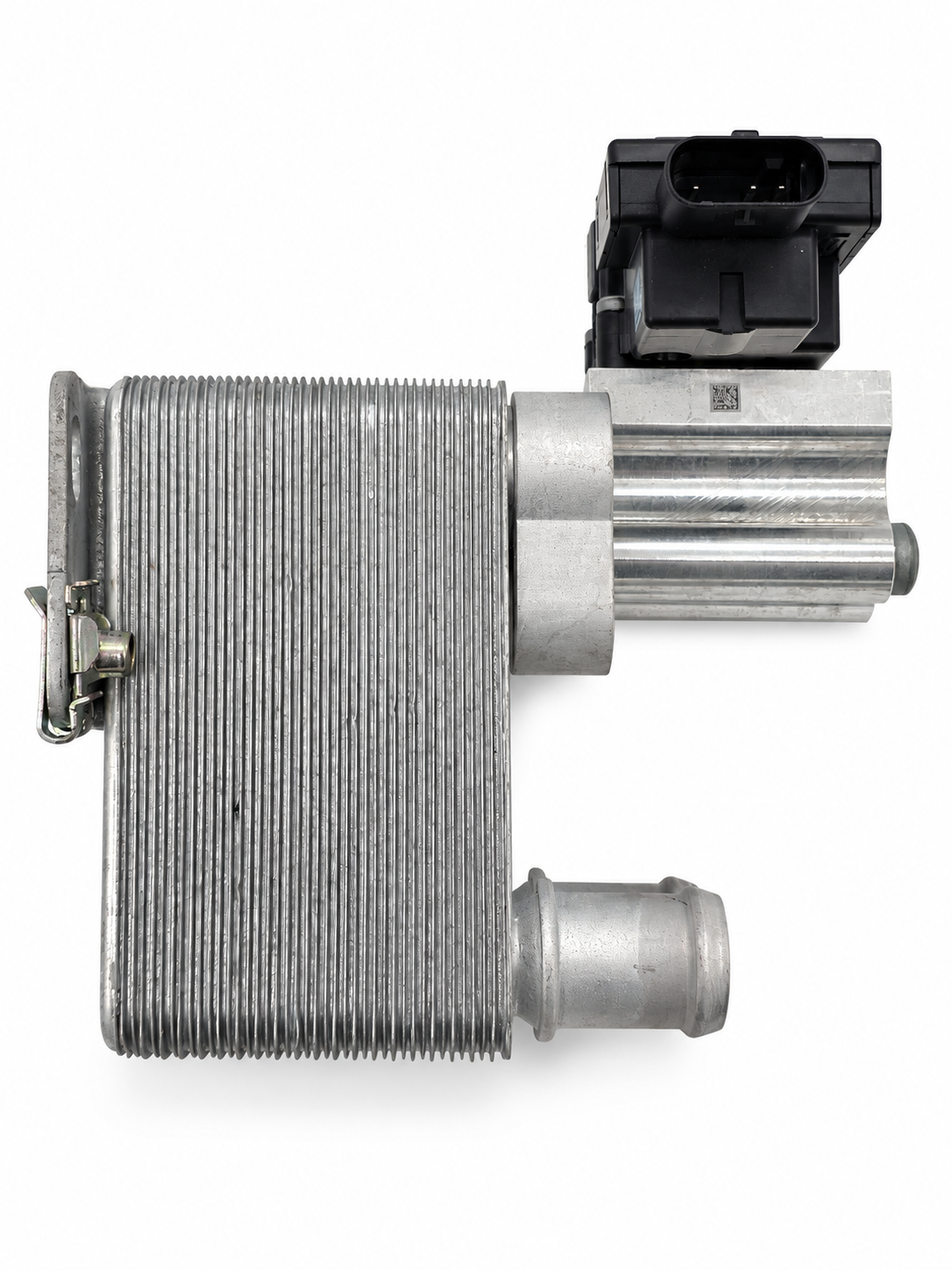

High-voltage system heat exchanger – new, genuine VAG

New genuine VAG heat exchanger for the thermal management of the high-voltage system of electric models on the MEB platform. The heat exchanger transfers heat from the cooling circuit of the high-voltage battery and the drive unit to the second circuit, keeping the battery temperature within its operating range while driving and charging.

If the heat exchanger no longer works properly, for example due to internal contamination or a leak, the high-voltage system can no longer dissipate enough heat. The vehicle then limits power or charging speed to protect the battery. A leak also causes loss of coolant.

This is a new, genuine VAG part (OEM).

OE numbers

1EA816114
1EA816111B
1ED816111
1EA816590B

Applicability

Audi – Q4 e-tron SUV (F4B) and Q4 e-tron Sportback (F4N), versions 35, 40, 45, 45 quattro, 50 quattro and 55 quattro, model year 03/2021 onwards. Engine codes: EBJA, EBRA, EDDA, EDFA.

Cupra – Born (K11, K1G), versions 45, 58, 58 e-boost, 63, 77 e-boost, 82 and 84, model year 08/2021 onwards. Engine codes: EBJC, EBJD, ECWA, ECWB, EDCA, EDCC.

Skoda – Enyaq iV SUV (5AZ) and Enyaq iV Coupé (5AC), versions 50, 60, 80, 80x 4x4, 85, 85x 4x4 and RS 4x4, model year 10/2020 onwards. Engine codes: EBJA, EBJC, EBRA, EDCC, EDDA, EDFA.

Volkswagen – ID.3 (E11, E12, E13) Pure, Pro, Pro S and 1st, model year 11/2019 onwards. Engine codes: EBJA, EBJC, EBJD.

Volkswagen – ID.4 (E21) Pure, Pure Performance, Performance, Pro, Pro 4motion, GTX and GTX 4motion, model year 05/2020 onwards. Engine codes: EBJA, EBJC, EBRA, EDCA, EDDA, EDFA.

Volkswagen – ID.5 (E39) Pro, Pro Performance and GTX 4motion, model year 07/2021 onwards. Engine codes: EBJA, EBRA, EDDA, EDFA.

Volkswagen – ID.7 (ED2) and ID.7 Tourer (ED5), versions PRO and PRO S, model year 06/2023 onwards. Engine codes: EDFA, EDFB.

Volkswagen – ID. Buzz Bus (EBB, EBJ) Electric and ID. Buzz Cargo (EBA) Electric, model year 04/2022 to 06/2024. Engine code: EBJA.

Important installation information

NOTE: work on the high-voltage system may only be carried out by a suitably trained technician and with the vehicle de-energised.

NOTE: before fitting, always compare the part number and the connections with the part being replaced, or have applicability checked by registration number.
