Micro Schakelaar voor DSG pook (VAG) 3Q0713128A

Micro Switch for DSG Selector Lever (VAG) 3Q0713128A

€75,75 EUR
Skip to product information
Micro Schakelaar voor DSG pook (VAG) 3Q0713128A

Micro Switch for DSG Selector Lever (VAG) 3Q0713128A

€91,66 incl. VAT | €75,75 excl. VAT
In stock
This information will be added to this item in the order.

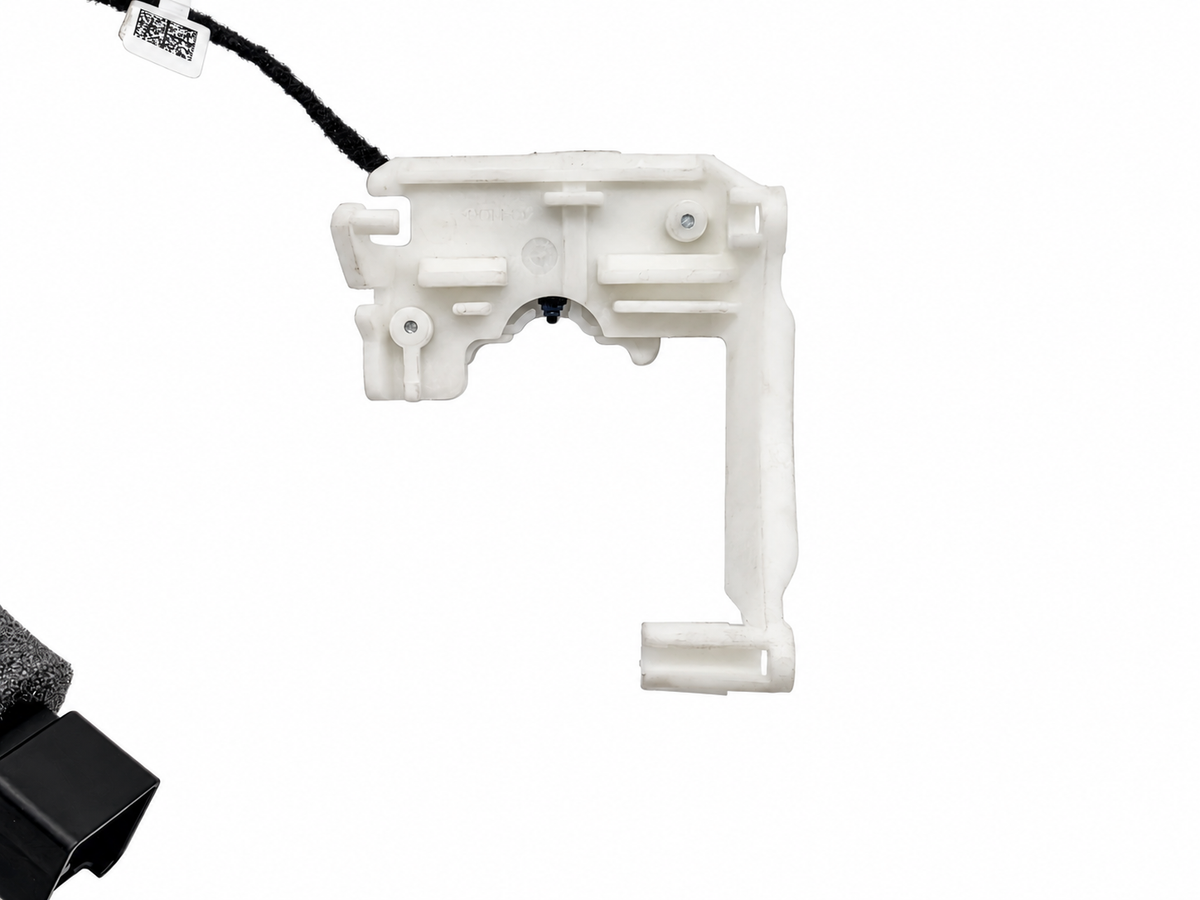

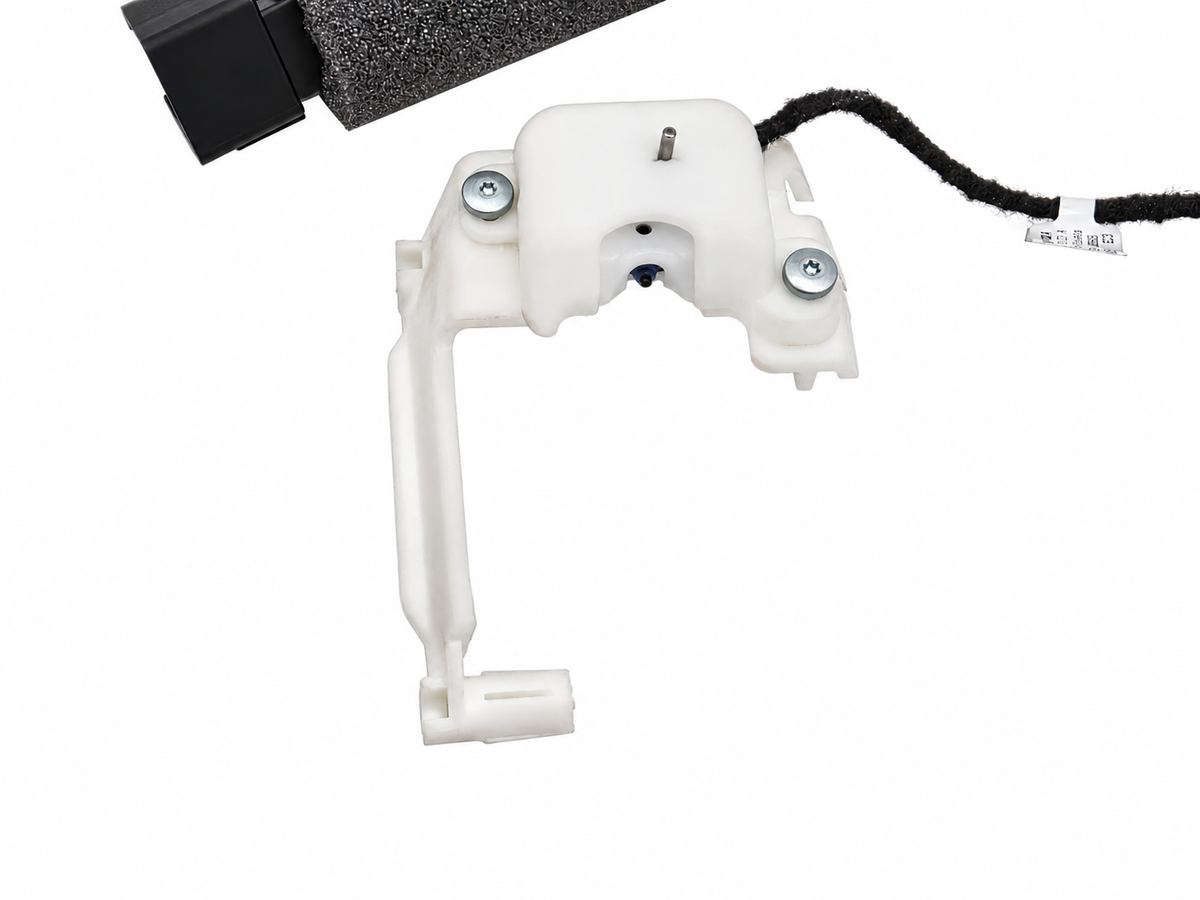

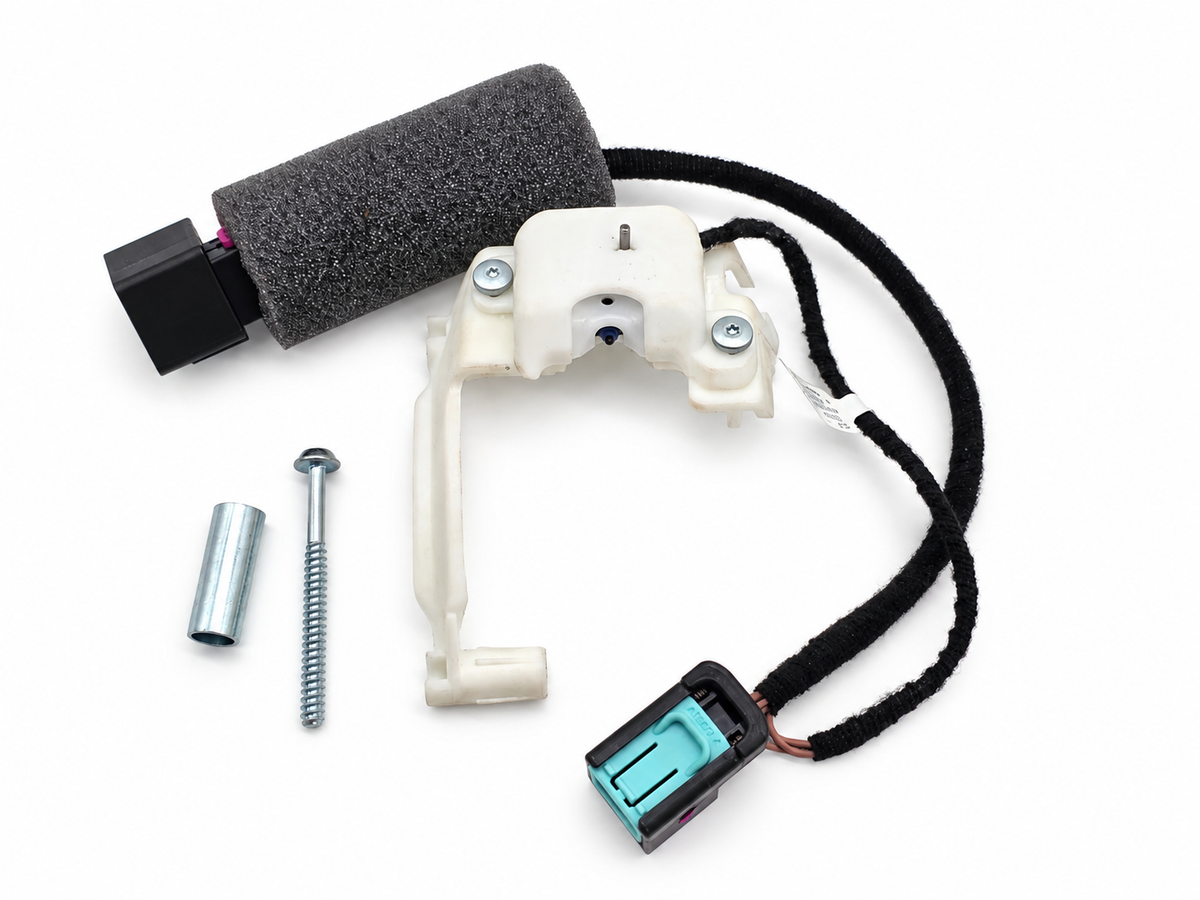

Micro switch 3Q0713128A (fitted with screws in the housing) for the VAG DSG selector lever. For complaints such as a park position that is not recognised, a vehicle that does not start or a selector lever message.

Please note: there are 3 different versions of this micro switch. They look alike but are not interchangeable.

Not sure? See the selection guide with photos →

Micro switch for the DSG selector lever (VAG) - 3Q0713128A

The micro switch in the selector lever registers the position of the lever and reports it to the transmission control unit. If this switch no longer works reliably, the vehicle does not recognise the selected position, or does not recognise it every time.

Associated complaints include: the vehicle does not start, the park position is not recognised, or a selector lever message appears in the instrument cluster. With this complaint the complete mechatronics unit or selector lever is regularly replaced unnecessarily, while replacing the switch is sufficient.

This part is built to VAG part number 3Q0713128A.


OE numbers

  • 3Q0713128A

Which version do you need?

VAG uses three different switches underneath the gear lever gaiter. The version fitted to the vehicle determines which switch you need:

  • Is the switch secured with screws in the housing? Then you need this switch (3Q0713128A).
  • Does the switch have ‘wings’ that are fitted with clips to the side of the housing, and a black cover? Then you need the 5Q0713128A.
  • Is there a white cover around the selector rod and is the switch fixed with 3 screws (for example Audi A3 8V)? Then you need the 3Q0713128.

Always check this before ordering. Unsure? Send us the registration number or VIN and we will check it for you.


Applicability

Suitable for VAG vehicles with DSG transmission.

Fitted to:

  • Skoda Kamiq
  • Skoda Scala
  • Audi Q2
  • Audi Q3 (from 2018)

The model year alone is not decisive. The check above and the part number on the old switch are always decisive.


Important fitting information

PLEASE NOTE: VAG uses several versions of this switch. Before ordering and fitting, always compare the part number and version of the old switch, or have the application checked by registration number or VIN.

The switch is accessible after removing the gear lever gaiter. After fitting, the switch must be adjusted correctly.


Product information

  • Product: micro switch for the DSG selector lever
  • Application: VAG vehicles with DSG transmission; check the part number beforehand
  • Quality: replacement part, built to part number 3Q0713128A
  • Condition: new
  • Fitting: in the selector lever, after removing the gear lever gaiter
